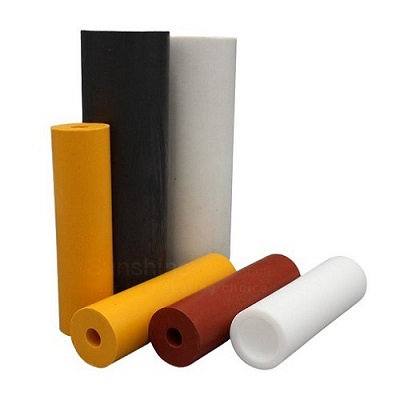

10% Ekonol Filled PTFE Tube

10% Ekonol Filled PTFE Tube

Ekonol® aromatic polyester fillers are a key component in extending the life of parts and components made from PTFE compounds

PDF DownLoad

Content

What is 10% Ekonol Filled PTFE Tube?

10% Ekonol filled PTFE tube is made of 10% Ekonol polyester powder blended with 90% PTFE. Ekonol® is an aromatic polyester. Ekonol gives PTFE better properties at higher temperatures, makes it more wear-resistant and does not wear out in the steel counter material. Therefore, PTFE with Ekonol is very suitable for rotary applications. It is also suitable for Food applications. Especially suitable for applications with soft counter materials such as aluminum.

Ekonol® aromatic polyester fillers are a key component in extending the life of parts and components made from PTFE compounds. It is primarily used in PTFE compounds for bearings and seals applications. And Ekonol® also called POB which is polyphenyl ester.


10% Ekonol Filled PTFE Tube Price


Ekonol Filled PTFE Grades

PB 9010 - 10% Ekonol Filled PTFE
PB 9015 - 15% Ekonol Filled PTFE
PB 9020 - 20% Ekonol Filled PTFE
PB 9025 - 25% Ekonol Filled PTFE

Advantages of 10% Ekonol Filled PTFE Tube

10% Ekonol filled PTFE tube has excellent wear resistance, Improved stability and at high temperatures. It also has excellent load-bearing capacity and good Corrosion resistance. Ekonol filled PTFE products will not wear soft metal surfaces. Additionally, 10% Ekonol filled PTFE blends resist self-wear better than other PTFE compositions, with good lubricity on molded parts.

Typical Applications

10% Ekonol filled PTFE tube is used for molded or extruded parts, bearings, seals, rotors and related parts.  compressor ring sets, 10% Ekonol filled PTFE works best under environmentally tough conditions where wear resistance, dimensional stability and corrosion resistance are critical.

10% Ekonol Filled PTFE Tube Properties

Properties
Test Methods
Typical Value
Test Unit
Density ASTM D792
2.18 g/cm3
Hardness shore D ASTM D2240 60 Sh.D
Tensile strength
ASTM D4745
18 Mpa
Elongation at break 23°C ASTM D4745
260 %
Coefficient of dynamic friction ASTM D1894 0.15 -
Thermal conductivity 23°C DIN 52612 0.32 W/K.m
Working temperature - -200 to 260 °C
