NEMA G10 Epoxy Fiberglass Tube
EPGC 201 NEMA G10 Epoxy Fiberglass Tube
Content

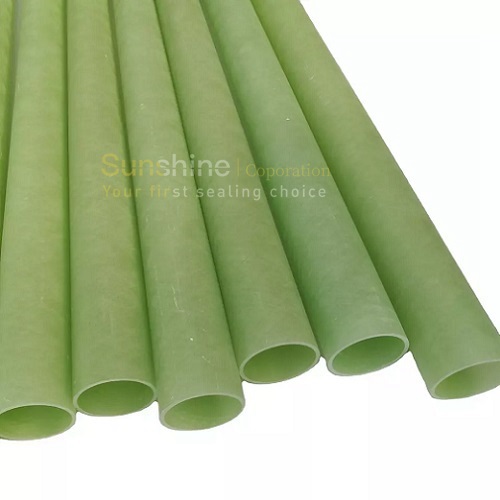

NEMA G10 Epoxy Fiberglass Tube
NEMA G10 epoxy fiberglass tube is made of alkali-free glass fabric and binded with epoxy resin, in heat rolling and tightening, baking and curing, with high mechanical property and stable electrical property in high humidity, suitable for being used as insulation structural parts of mechanical, electrical and electronic equipment. It has high working temperature index up to 130ºC.NEMA G10 epoxy fiberglass tube has high mechanical and electrical properties. It has a good mating and punching properties. It conforms to EN60893/IEC893 Grade EPGC 201, DIN7735 Grade HGW2372, NEMA LI-1 Grade G10 and IS10192 Grade EP1.
Advantages and Benefits of NEMA G10 Epoxy Fiberglass Tube
NEMA G10 epoxy fiberglass tube has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry. NEMA G-10 is a non-brominated, non-flame retardant grade of glass epoxy laminate. NEMA G-10 from us Ningbo Sunshine is RoHs and REACH compliant to ensure reliability, safety and consistency.What is the Difference Between FR4 and G10?
The main difference between NEMA Grades G10 and FR4 is that FR4 is a fire retardant grade of G10. Therefore, FR4 can be safely substituted where G10 is called for, while G10 can never be substituted where FR4 is called for.Specification:
Diameter range: From 8 mm to 810 mmWall thickness : 0.5 mm, 0.8mm or more
Max length: 10m
G10 Tube Physical Properties
| Testing Item | Testing Method | Testing Unit | Testing Result |
| Density | ASTM D792 | g/cm3 | 1.8 - 2 |
|
Water Absorption, 24 hrs |
ASTM D570 | % | 0.1 |
|
Tensile Strength |
ASTM D638 | psi | 45000 |
|
Flexural Strength |
ASTM D790 | psi | 75000 |
|
IZOD Notched Impact |
ASTM D256 |
ft-lb/in |
14 |
|
Compressive Strength |
ASTM D695 | psi | 65000 |
|
Coefficient of Linear Thermal Expansion |
ASTM D696 |
x10-5 in./in./°F |
0.55 |
|
Max Operating Temp |
- |
ºC |
130 |
| Hardness | ASTM D785 | Rockwell M | M110 |
