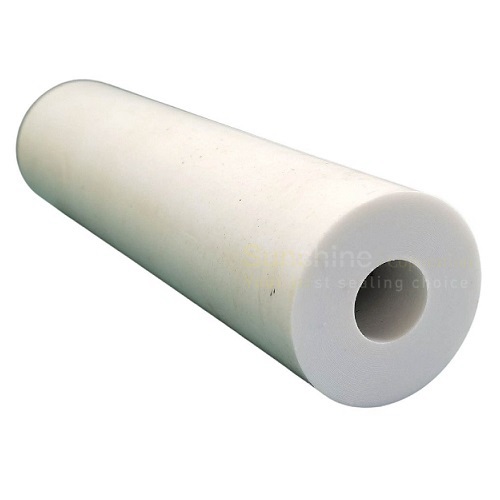

20% Glass Fiber Filled PTFE Bush
Glass Fiber Added in PTFE various amounts (5% to 30%), increases compressive strength, rigidity and wear; reduces creep and cold flow
Content
What is 20% Glass Fiber Filled PTFE Bush?
20% glass fiber filled PTFE bush is made of 20% galss fiber with 80% virgin PTFE. Glass fibers have the least effect on chemical and electrical properties and add greatly to the mechanical properties of unfilled PTFE. Adding glass fibers to PTFE improves compressive properties by as much as 30% and improves creep and wear resistance to standard PTFE. These properties are improved with the addition of a glass filler. This glass filler improves dimensional stability, raises the heat deflection temperature and improves creep resistance. 20% glass fiber filled PTFE bushes resist acids and oxidation but can be attacked by alkali.
Grades of Glass Fiber Filled PTFE
GL7504 - 4% Glass Fiber Filled PTFEGL7505 - 5% Glass Fiber Filled PTFE
GL7510 - 10% Glass Fiber Filled PTFE
GL7515- 15% Glass Fiber Filled PTFE
GL7520 - 20% Glass Fiber Filled PTFE
GL7525 - 25% Glass Fiber Filled PTFE
Features
20% glass fiber filled PTFE bush has Extremely good chemical resistance, good sliding properties and improved dimensional stability. 20% glass fiber filled PTFE bush also has enhanced creep resistance and very good electrical insulation properties.Applications
20% glass fiber filled PTFE bush can be used for Pump housings, Valve seats, Valve seats, gaskets, Chemical engineering parts, Pure water production, Machine parts, Shaft seals, Pump and instrument construction, Food and medical technology.Physical Properties of 20% Glass Fiber Filled PTFE Bush
|
Properties |
Test Methods |
Typical Value |
Test Unit |
| Density |
ASTM D792 |
2.22 |
g/cm3 |
| Hardness shore D | ASTM D2240 | 62 |
Sh.D |
|
Tensile strength |
ASTM D4894 |
19 | Mpa |
| Elongation at break 23°C |
ASTM D4894 |
225 |
% |
| Coefficient of dynamic friction | ASTM D1894 | 0.15 |
- |
|
Flammability |
UL 94 |
V-0 | - |
| Thermal conductivity 23°C | DIN 52612 | 0.4 | W/K.m |
| Water absorption Max | ASTM D570 | 0.013 |
% |
| Working temperature | - | -200 to 260 | °C |
