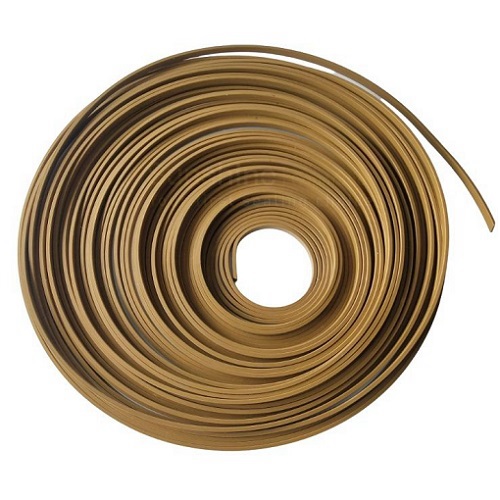

60% Bronze PTFE Guide Strip Tape for Hydraulic
Buy quality 60% Bronze PTFE Guide Strip Tape for Hydraulic from us Ningbo Sunshine. Different thickness and width PTFE Guide tape in large quantity
Content
What is 60% Bronze PTFE Guide Strip Tape for Hydraulic?
60% Bronze PTFE guide strip tape for hydraulic is a flexible and low friction strip tape with high thermal conductivity, low thermal expansion and good creep resistance. Because of the self-lubricating properties and high compressive strength of 60% bronze filled PTFE guide wear tape, it is much less likely to stick-slip when operating at low rotational speeds, even with higher radial forces when compared to other strip materials.Our standard bronze filled PTFE strip tape color can be brown, blue, green, Golden yellow color and black.
Special Features
60% Bronze PTFE guide strip tape for hydraulic is self-lubricating material to provide low dynamic and breakout friction, suitable for high speed applications and it has high fatigue strength material for long service life and reduced downtime, dampens mechanical vibrations, and it is versatile and easy to assemble.Typical applications
60% Bronze PTFE guide strip tape for hydraulic is often used in conjunction with compact type piston head seals in hydraulic systems to eliminate metal to metal contact and other problems associated with offset pistons. And it can be used for the guiding of piston and piston rod of hydraulic cylinder and air cylinder.Properties
|
Properties |
Test Methods |
Typical Value |
Test Unit |
| Density |
ASTM D792 |
3.8 |
g/cm3 |
| Hardness shore D | ASTM D2240 | 66 |
Sh.D |
|
Tensile strength |
ASTM D638 |
20 | Mpa |
| Elongation at break 23°C |
ASTM D638 |
220 |
% |
| Coefficient of dynamic friction | ASTM D1894 | 0.2 |
- |
|
Flammability |
UL 94 |
V-0 | - |
| Water absorption Max | ASTM D570 | 0 |
% |
| Working temperature | - | -200 to 260 | °C |
